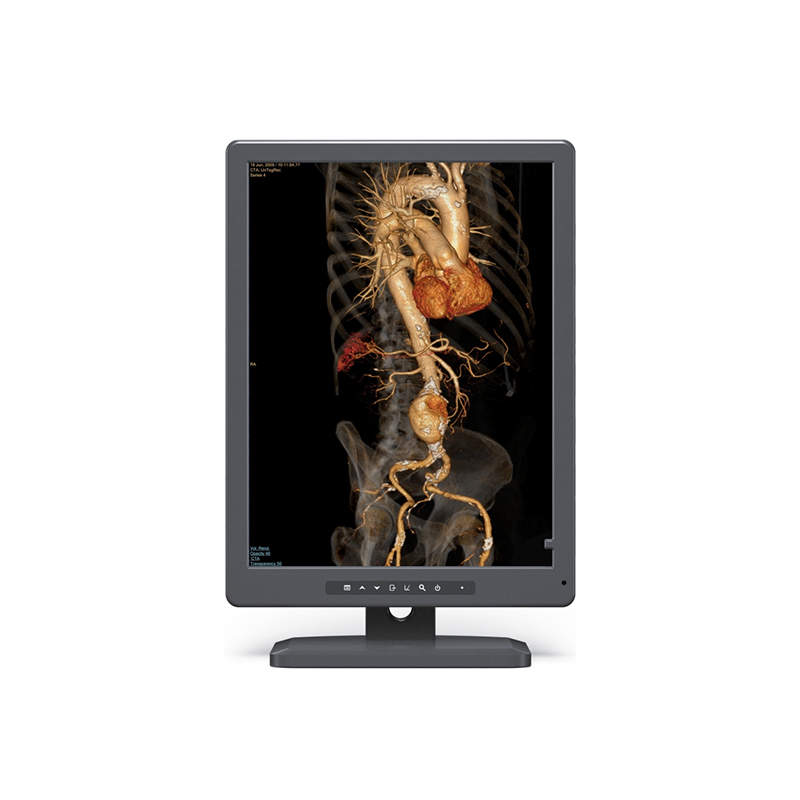

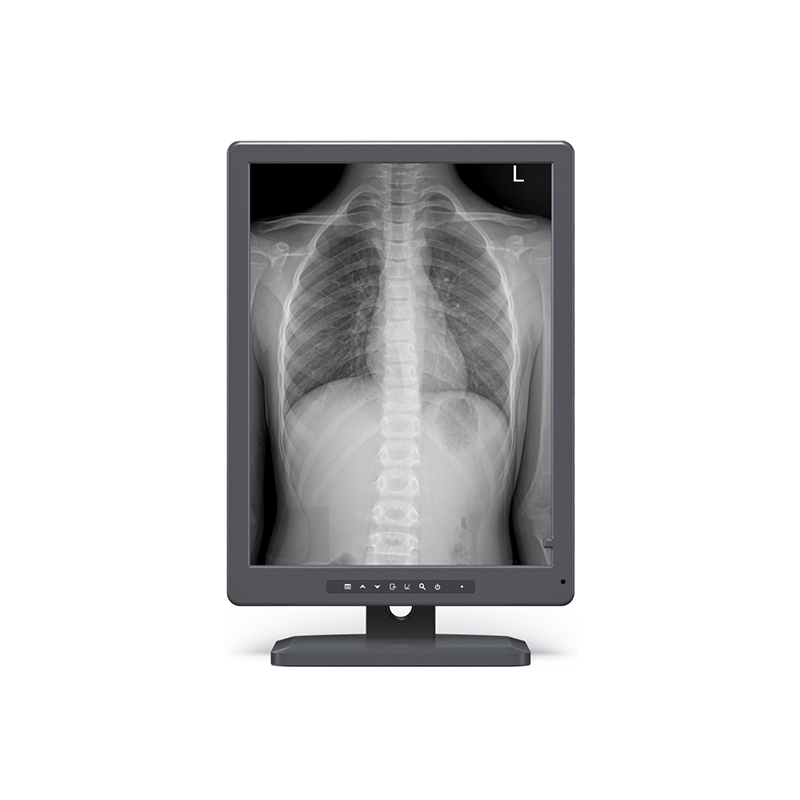

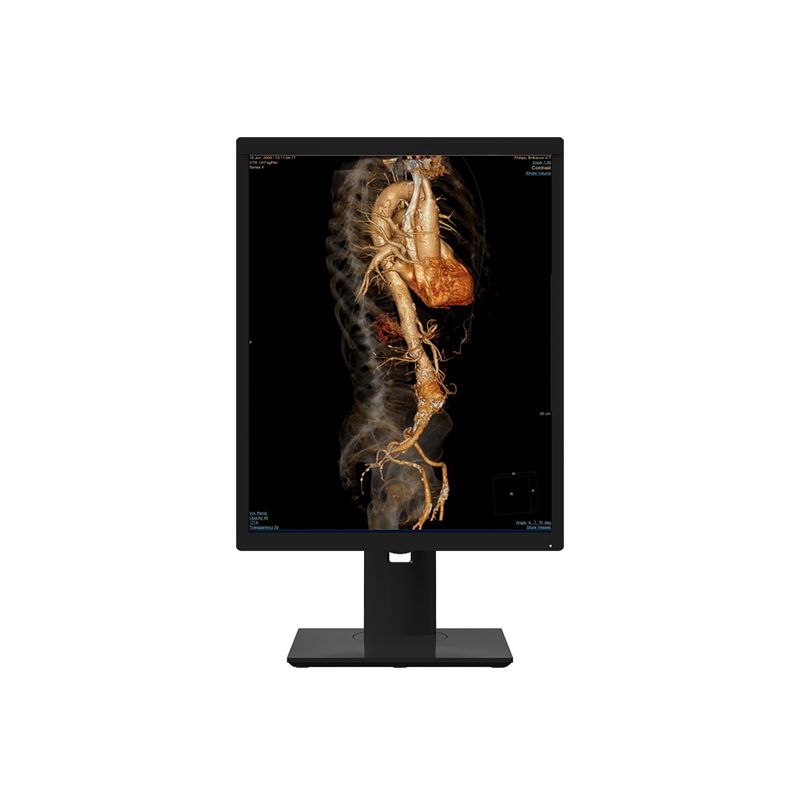

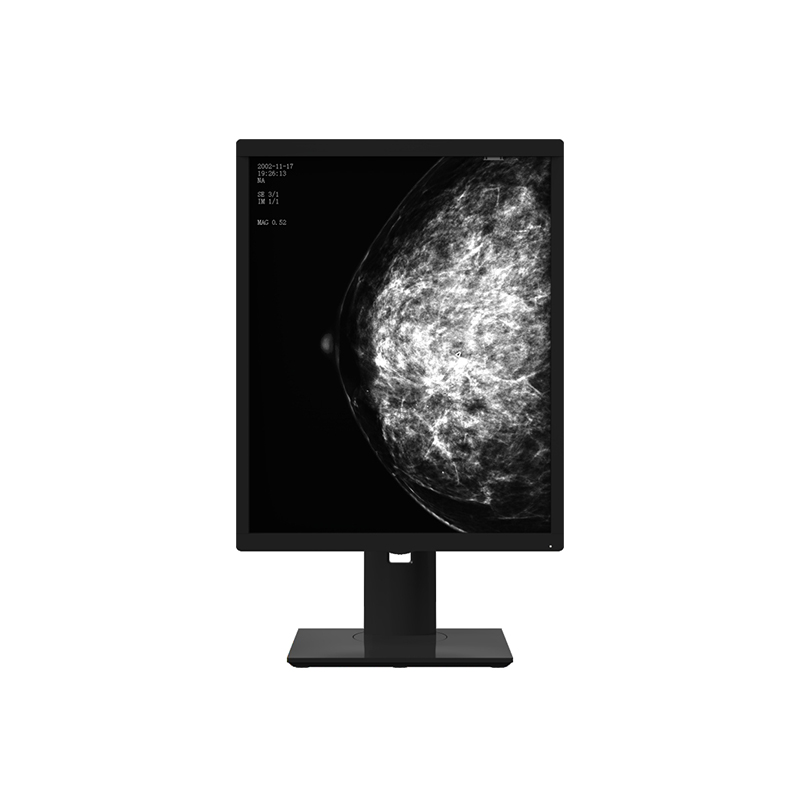

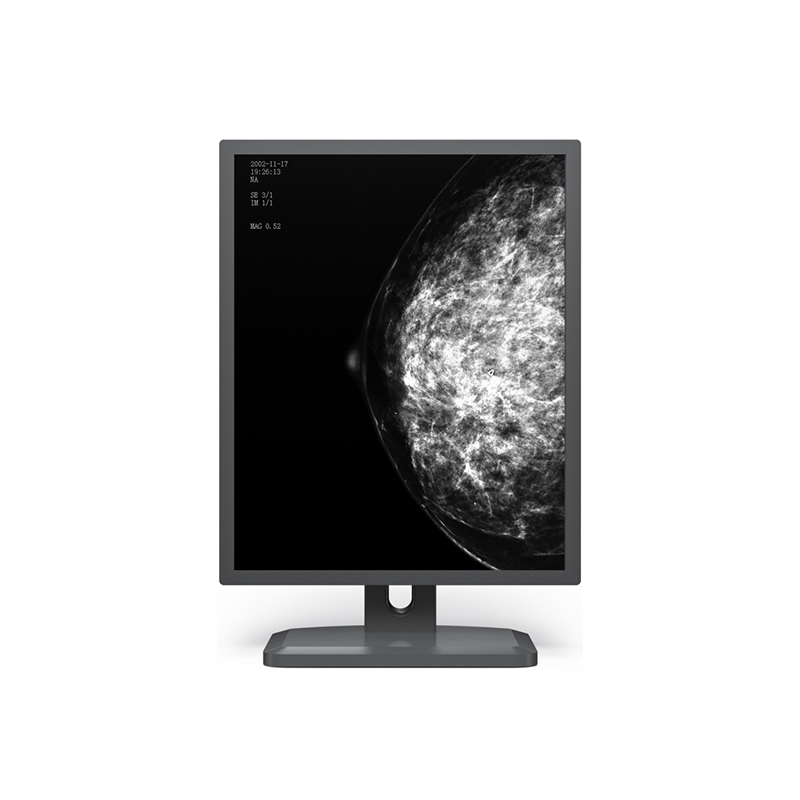

Radiological diagnostic Display

Diagnostic display is a professional medical color display with excellent picture quality to meet the display needs of various viewing environments. It can maintain optimal brightness for a long time, show the image details accurately, and adapt to diagnostic needs in complex environments.


Hotline：

+852 59579178

 WhatsApp：

+852 59579178

 E-mail：

musk.lyu@abletec.com.hk
Product Parameters
Model number
19X1C21X2C-I021X2M-I021X3C-I021X3M-I021X5C-I321X5M-I221X5M-I3
Backlight typeLEDLEDLEDLEDLEDLEDLEDLED
Panel size19.0 inches21.3 inches21.3 inches21.3 inches21.3 inches21.3 inches21.3 inches21.3 inches
Image Size376.32 (H)×301.056 (V) mm432 (H)×324 (V) mm432 (H)×324 (V) mm433.15 (H)×324.86 (V) mm433.15 (H)×324.86 (V) mm422.4 (H)×337.92 (V) mm422.4 (H)×337.92 (V) mm422.4 (H)×337.92 (V) mm
Maximum resolution1280*1024@60Hz1600*1200@60Hz1600*1200@60Hz2048*1536@60Hz2048*1536@60Hz2560*2048@50Hz2560*2048@50Hz2560*2048@50Hz
Pixel pitch0.294×0.294 mm0.27×0.27 mm0.27×0.27 mm0.2115×0.2115 mm0.2115×0.2115 mm0.165×0.165 mm0.165×0.165 mm0.165×0.165 mm
LUT6Bit48Bit16Bit48Bit16Bit48Bit16Bit16Bit
Luminance330cd/㎡(Typ.)1000cd/㎡(Typ.)1900cd/㎡(Typ.)1000cd/㎡(Typ.)2000cd/㎡(Typ.)1150cd/㎡(Typ.)3000cd/㎡(Typ.)3000cd/㎡(Typ.)
Contrast Ratio1000: 1(Typ.)1500: 1(Typ.)1800: 1(Typ.)1500: 1(Typ.)1500: 1(Typ.)2000: 1 (Typ.)2000: 1(Typ.)2000: 1 (Typ.)
Response timeTr+Tf=30msTr+Tf=16msTr+Tf=18msTr+Tf=28msTr+Tf=28msTr+Tf=25msTr+Tf=20msTr+Tf=25ms
View Angle

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 170(Typ.)

U/D: 170(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

R/L: 178(Typ.)

U/D: 178(Typ.)

Display surface treatmentAGAGAGAGAGAGAG
AG
Input interfaceVGA/DVI/DP/HDMVGA/DVI/DPVGA/DVI/DPVGA/DVI/DPVGA/DVI/DPVGA/DVI/DP/HDMIVGA/DVI/DPVGA/DVI/DP
GAMMA

Linear/GAMM

A1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI

Linear/GAMMA

1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI/(MRI/CT)

Linear/GAMMA

1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI/(MRI/CT)

Linear/GAMMA

1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI/(MRI/CT)

Linear/GAMMA

1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI/(MRI/CT)

Linear/GAMMA

1.8/GAMMA

2.0/GAMMA

2.2/GAMMA

2.4/CRT/DICOM

1/DICOM

2/DSA/DSI

Linear/GAMMA

1/GAMMA

2/GAMMA

3/GAMMA

4/CRT/DICOM

1/DICOM

2/DSA/DSI/(MRI/CT)

Linear/GAMMA

1.8/GAMMA

2.0/GAMMA

2.2/GAMMA

2.4/CRT/DICOM

1/DICOM

2/DSA/DSI

Power adapter

Output interface: DIN-4 Input interface, 4PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 12V~7A

Output power: 84W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Output interface: IEC320-C14 Input interface 3PIN DC output

Input voltage: AC 100~240V,50~60Hz

Output voltage: 24V~5A

Output power: 120W

Power factor: PF0.90

Display size427 x 353 x 60mm376.98 x 503.98 x 61.7mm376.98 x 503.98 x 61.7mm376.98 x 503.98 x 61.7mm376.98 x 503.98 x 61.7mm366.7 x 462.6 x 59.33mm370.4 x 455.0 x 65.0mm366.7 x 462.6 x 59.33mm
Shell assemblyAluminum profile frame, sheet metal back coverFront frame black plastic shell, rear shell sheet metalFront frame black plastic shell, rear shell sheet metalFront frame black plastic shell, rear shell sheet metalFront frame black plastic shell, rear shell sheet metalblack plastic caseBlack sheet metal shellGrey/silver plastic case
Net weight of whole machine6.5kg(without base)9.8kg(base included)9.8kg(base included)10.5kg(base included)10.5kg(base included)6.3kg(base included)13kg(base included)6.3kg(base included)
Storage/shipping condition

Temperature: -20℃ ~+60℃

Humidity: 10%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 10%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Temperature: -20℃ ~+60℃

Humidity: 0%~90%(non-condensing)

Working environment

Temperature: 0℃ -50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃ -50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃-50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃-50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃-50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃ -50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃ -50℃

Humidity :20%-85%(non-condensing)

Temperature: 0℃ -50℃

Humidity :20%-85%(non-condensing)

Power consumption

Max: ≤30W

Standby: ≤1.5W

Max: ≤50W

Standby: ≤1.5W

Max: ≤40W

Standby: ≤1.5W

Max: ≤50W

Standby: ≤1.5W

Max: ≤50W

Standby: ≤1.5W

Max: ≤60W

Standby: ≤1.5W

Max: ≤60W

Standby: ≤1.5W

Max: ≤60W

Standby: ≤1.5W

Use the mouse wheel to scroll vertically and slide horizontally to view more content.

Product Features
Clearly and precise imaging quality: Radiological diagnostic Display has the advantages of high resolution, high contrast, etc. The display applies DICOM self-calibration, brightness stability, and environment light adaptive technology, which can maintain the optimum brightness for a long time. Comply with the DICOM display standard, ensuring the accuracy of PACS image diagnosis during the whole life cycle of the display.
Environment adaption: Radiological diagnostic Display can adjust the display backlight brightness to make the display brightness more suitable for the current reading environment according to the change in environment brightness. At the same time, it supports 90° rotation of the screen, compatible with horizontal screen and vertical screen, and supports a variety of LUT mode switching to adapt to different medical device images and meet the display needs of various film reading environments.
Low blue light technology: Radiological diagnostic Display adapts low blue light technology, chooses the low blue light lamps, greatly reduces the damage of harmful blue light to eyes, better cares for the doctor.
Supports multiple input interfaces: Radiological diagnostic Display supports input ports such as VGA, DVI, DP and HDMI, and can switch between multiple signals freely. It can support light box mode so that you can watch traditional film.
Product Application
Product instructions
Q1: What are the main features or selling points of the product?
A: Anti-accidental touch function during injection to prevent operation errors, dual CPU to ensure safer work.
Q2: What is the warranty period of the product?
A: One year.
Q3: What is the MOQ for the product?
A: One unit.
Q4: What type of customers is the product mainly targeted at?
A: Families and pet hospitals.
